SKYRC NC2200 NIMH/NICD AA/AAA BATTERY CHARGER SK-100181

SKYRC NC2200 NIMH/NICD AA/AAA BATTERY CHARGER SK-100181

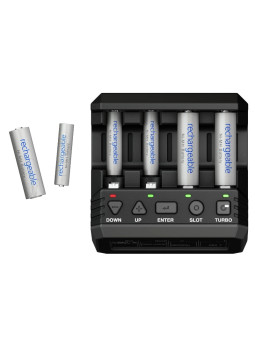

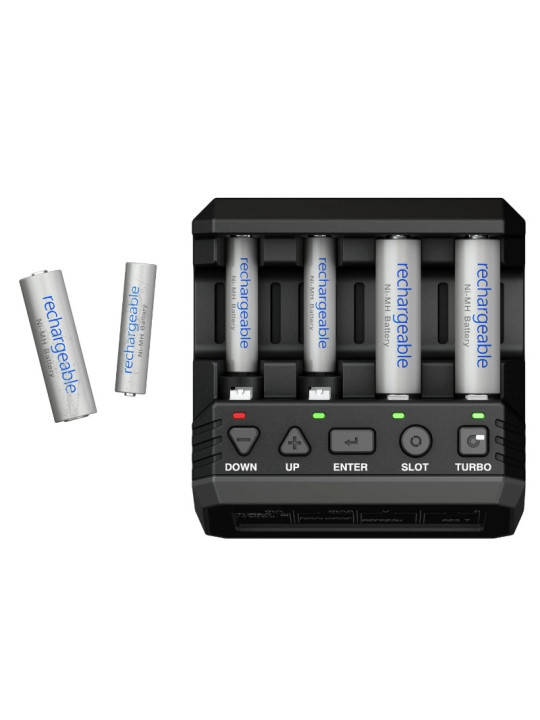

This SkyRC NC2200 AA/AAA battery charger-analyzer charges up to 4 batteries at once, so you can quickly power your electronic devices. The visual charging status keeps you informed on when your batteries are ready for use.

It can handle 1 to 4 AA and AAA NiMH/NiCD rechargeable batteries via four independent charging slots with its respective interface.

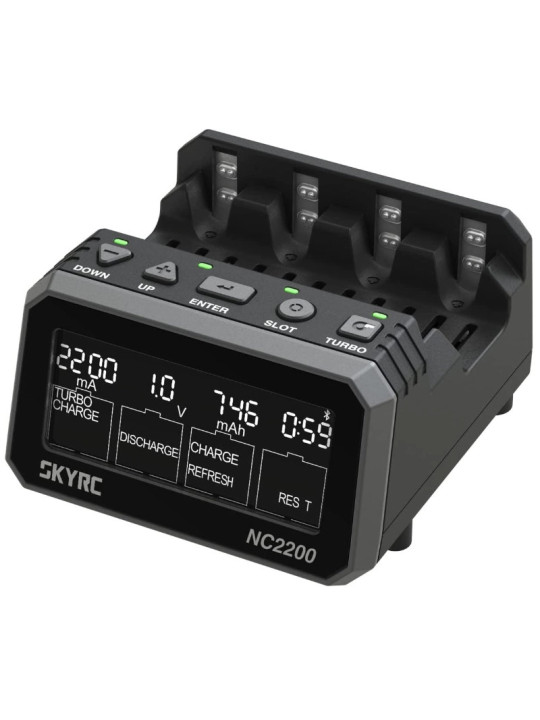

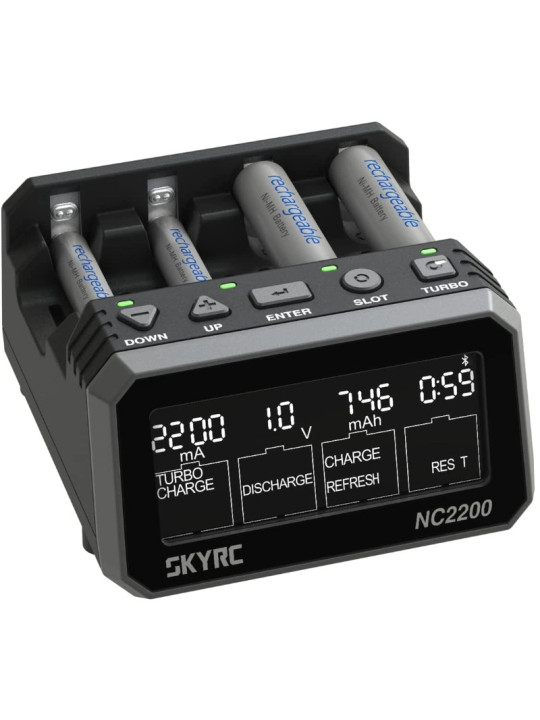

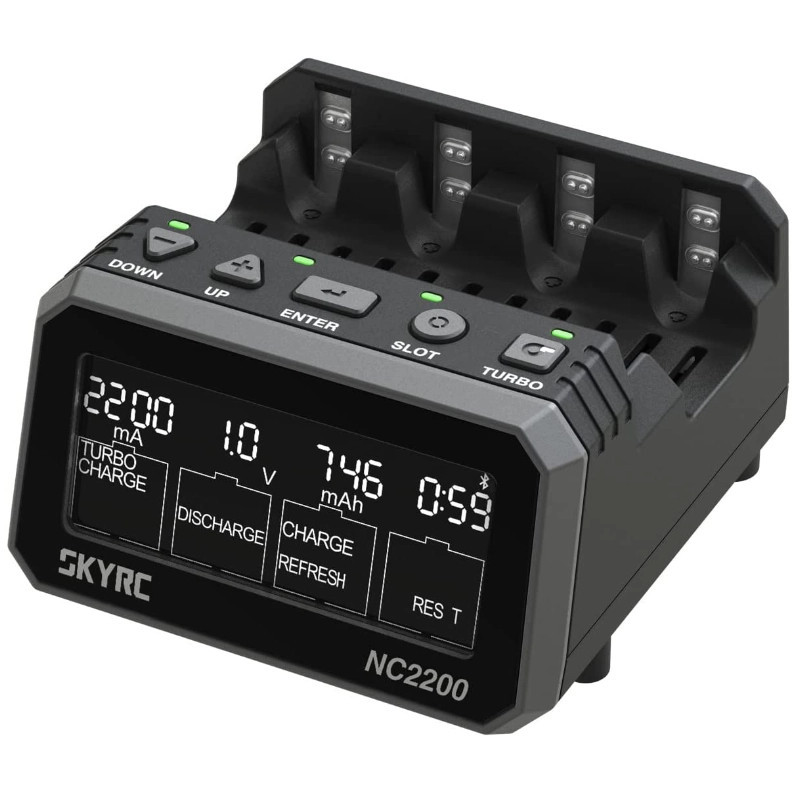

With the wide-viewing VA screen, the charger displays Current, Capacity, Internal Resistance, Voltage, Elapsed Time, and working mode at a glance. Meanwhile, the charging graph and firmware upgrading can be accessible with the SkyCharger app if you connect the optional Bluetooth Dongle.

The Cortex-M3 processor is specifically developed for high-performance, cost-effective platforms for various devices, including microcontrollers, automotive body systems, industrial control systems, and wireless networking and sensors.

Thanks to Cortex-M3 by ARM, NC2200 can complete real-time acquisition of battery voltage and current, and the charging process under intelligent control. It can automatically calculate the remaining charging time of the battery and adjust the parameters. System management circuit also has a protective function, which can prevent damage to the battery from overcharge and overtime.

NC2200 Charger Features:
● 4 independent charging slots, each with 2000mA/2200mA (Turbo)
● Battery rescue program
● High-contrast VA display
● Internal resistance measurement incl. FlexiPulse
● Rugged technology in a pocket-sized format
● Advanced safety features
● 5 charging modes: Turbo (fast charge), Charge, Discharge, Refresh & Analyze, Run

Technical Specifications :
● DC Input Voltage: 12V/2.0A
● Charging Current: 0.2A - 2.2A
● Discharging Current: 0.1A - 1.0A
● Battery Type: AA/AAA NiMH
● Supported Capacity: 500-3200mAh
● Protection Capacity: 3200mAh
● Weight: 370g
● Dimensions: 112.1 x 108 x 62 mm

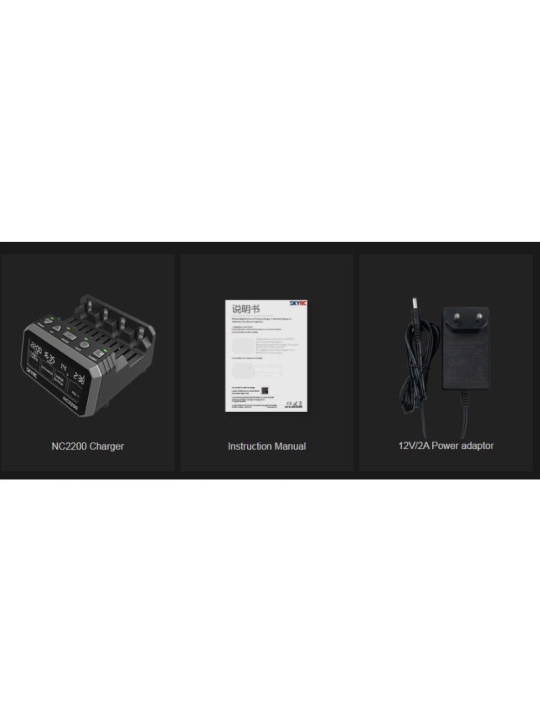

Box Contents :
● 1 x NC2200 Charger
● 1 x Power Supply
● 1 x User Manual
