KYOSHO MINI-Z 4X4 MX-01 LAND-ROVER DEFENDER AUTOBIOGRAPHY G-BK (KT531P) 32526GM

KYOSHO MINI-Z 4X4 MX-01 LAND-ROVER DEFENDER AUTOBIOGRAPHY G-BK (KT531P) 32526GM

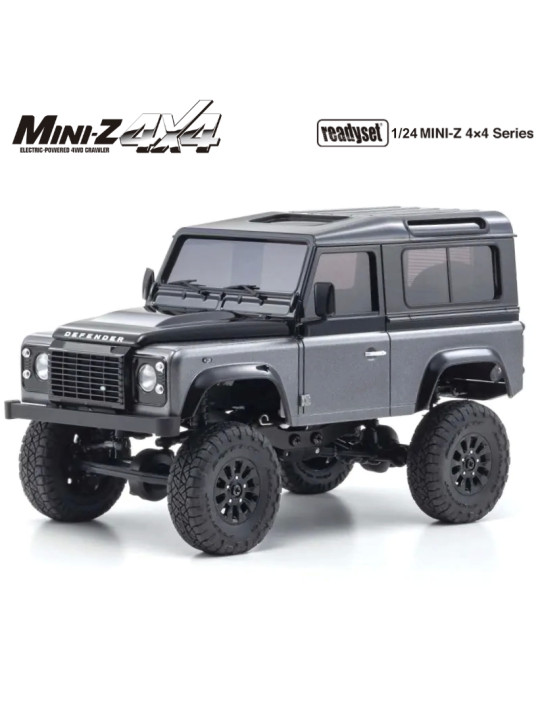

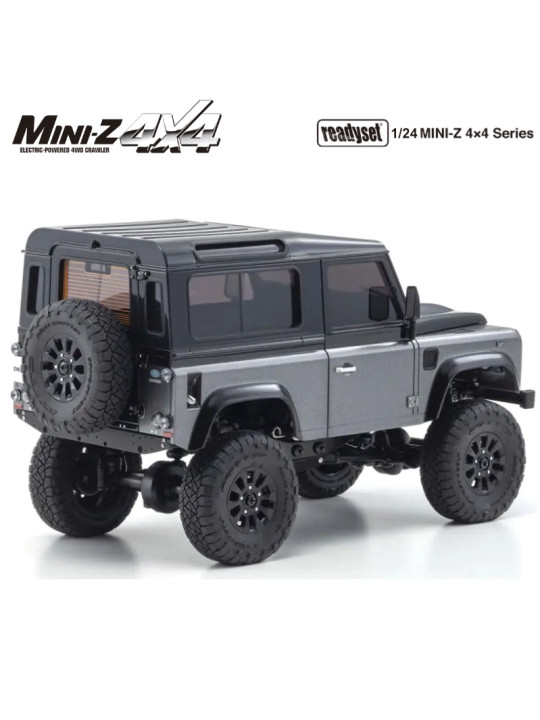

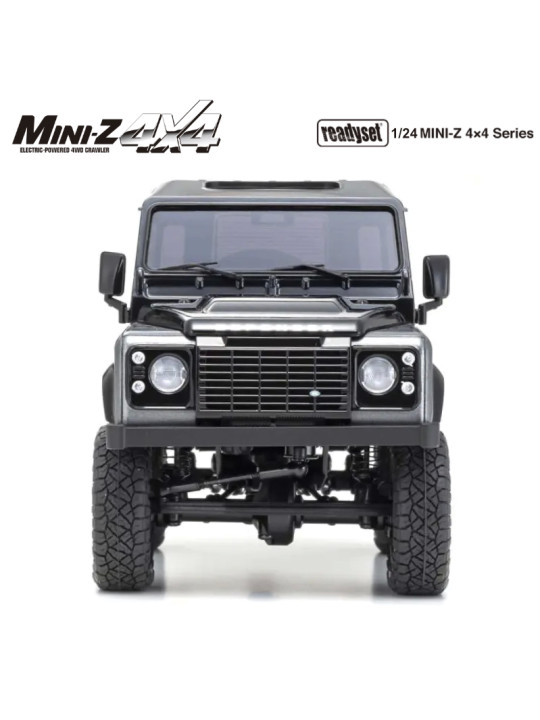

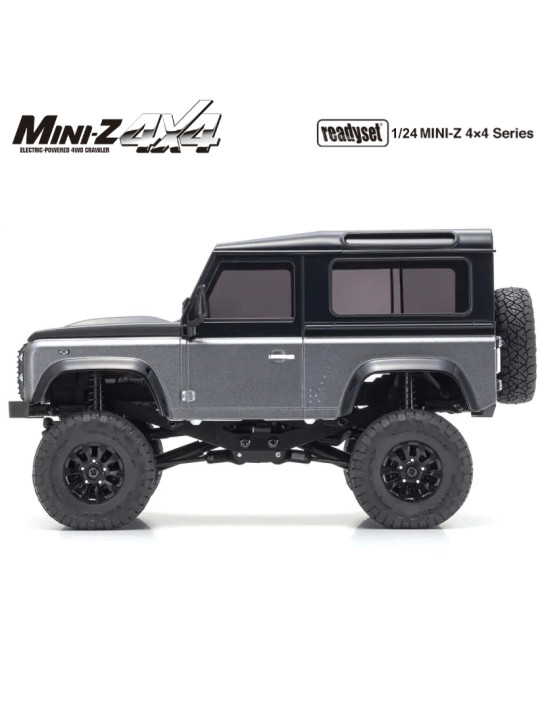

In the emblematic range here is the Land-Rover Defender 90!

The MX-01 series is built with the attention to scale detail and quality design expected of Kyosho, and a design that allows MINI-Z fans to expand their horizons with climbing and crawling capabilities. This scale 4x4 beauty features a fine-tuned overall design, superior driving performance, and high-quality injection-molded scale body and details.

Features :
● Fully pre-painted body looks like a luxury diecast car replica.
● A one-touch body mounting system is used instead of the mounts commonly used on all previous Mini-Z cars and trucks. The system uses spring-wire retainers to quickly and easily install and remove the body.

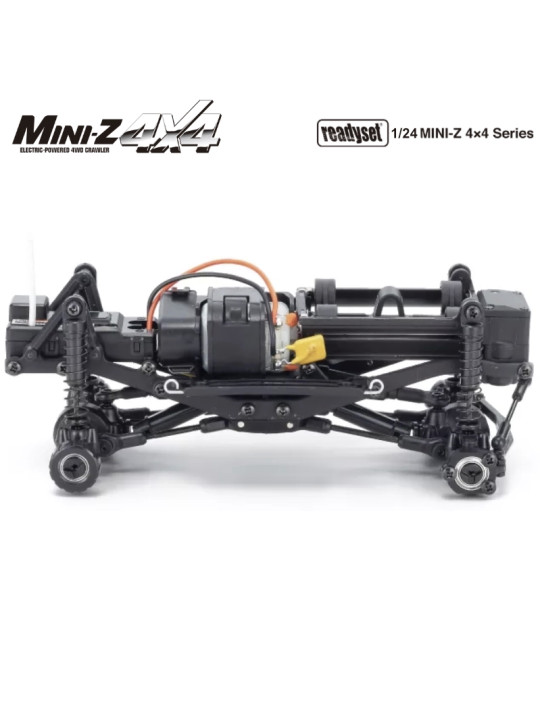

● The Mini-Z 4x4 incorporates a ladder frame design with steel vertical plates, in combination with various molded parts, to deliver the ultimate balance of rigidity and flex for superior performance and durability.
● Solid front and rear axles feature links with steel rods and captured rod ends. Ring and pinion gears, in addition to other gears and components, feature metal construction to withstand heavy loads under the toughest driving conditions.
● The upper A-arms and lower links that connect the front and rear axles to the chassis, feature strong steel links and captured ball ends. This is the ideal design for strength, maximum range of motion, and smooth operation
● The shock absorbers feature 360-degree spring retainers, which means they can't be lost on the trail and the springs are more likely to re-seat when the suspension settles after hard impacts or operating at the extreme limits of the suspension. The spring retainers simply cannot come loose.
● The 4WD system transmits drive force to the wheels from the main gear unit in the center of the chassis through front and rear center shafts. The wheelbase can be set to either 110mm or 120mm by adjusting the length of the spacers on the upper arms (the Jeep uses a 120mm setting).
● The front axle features ideal Ackermann geometry. Combined with the advanced design of the axle housing and the other steering components, this model features the tightest turning radius in Mini-Z history. It means the Mini-Z 4x4 has exceptional handling capability for anything ranging from casual driving to hard-core crawling.
● The steering servo drag link and the rugged molded tie rod are part of a steering system that delivers an incredible amount of steering angle, which results in excellent rock crawling capability.
● Four AAA batteries are located on the top-front section of the chassis to ensure good ground clearance and achieve realistic rock crawler performance.

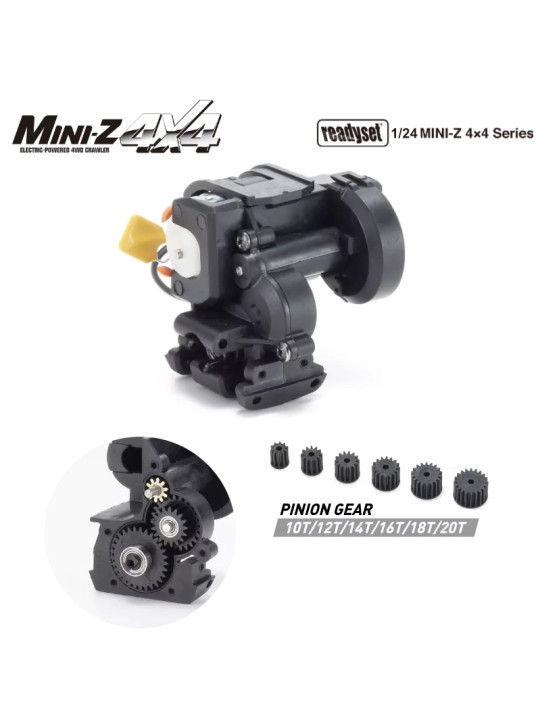

● The gearbox features molded covers and includes 6 pinion gears that allow adjustment from ultra-low gearing for steep terrain, through to high-speed gearing for smooth running on flat roads. In addition, the need for annoying backlash adjustments has been negated with the special spacer mounted on the outside of the motor.
● A Standard slipper clutch protects the drive system by reducing the torque when excessive load is applied. Note the metal upper shaft and primary gear for durability.
● The best drive efficiency is accomplished with the included set of 18 ball bearings, factory installed to ensure the smoothest most efficient operation possible, right out of the box.
● The Mini-Z 4x4 features a specially designed high-torque motor that is unique in the Mini-Z World. It's optimized for maximum torque, and it develops more power at lower speeds.

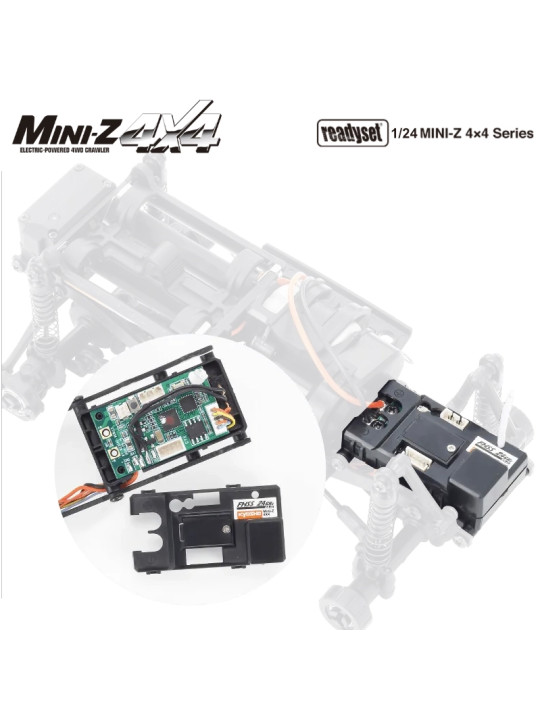

● The onboard electronics are also unique to the Mini-Z 4x4, with special features that improve the crawling experience. The accessory ports on top of the board allow an optional gyro (MZW446) and an optional LED light set (MZW429R) to be easily plugged in to enhance performance and realism.

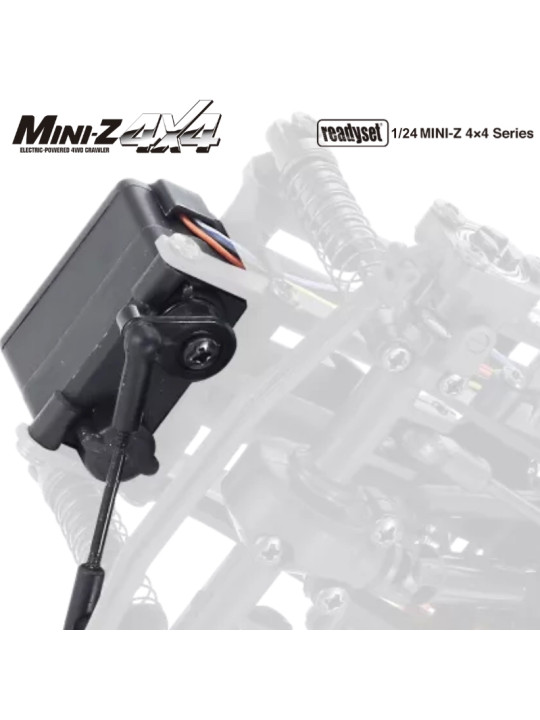

● The component steering servo features its own casing to allow enhanced performance, and it connects to the receiver/ESC with an independent connector.

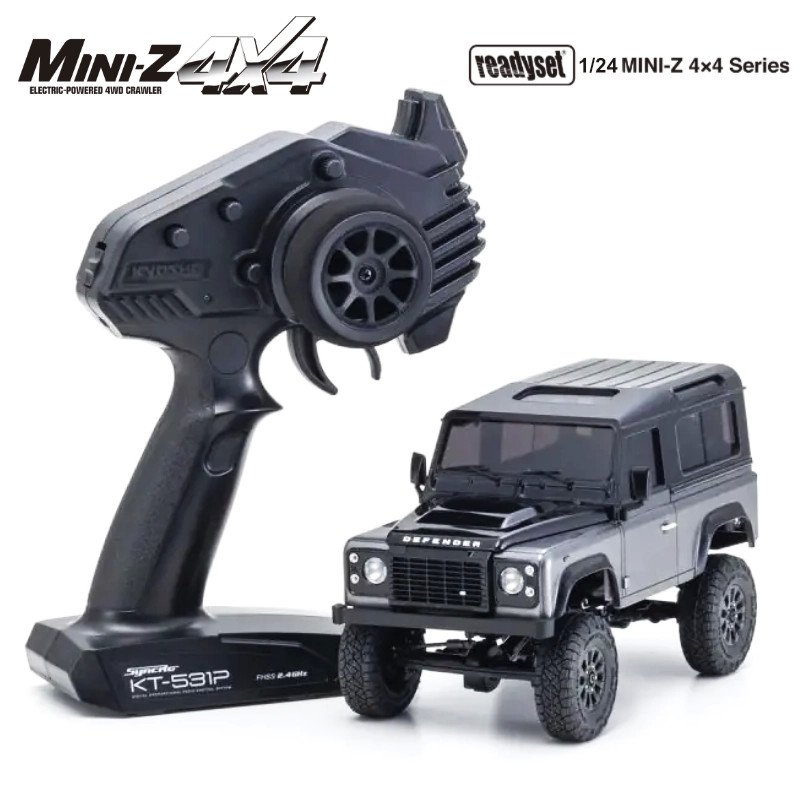

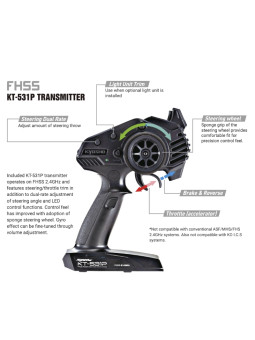

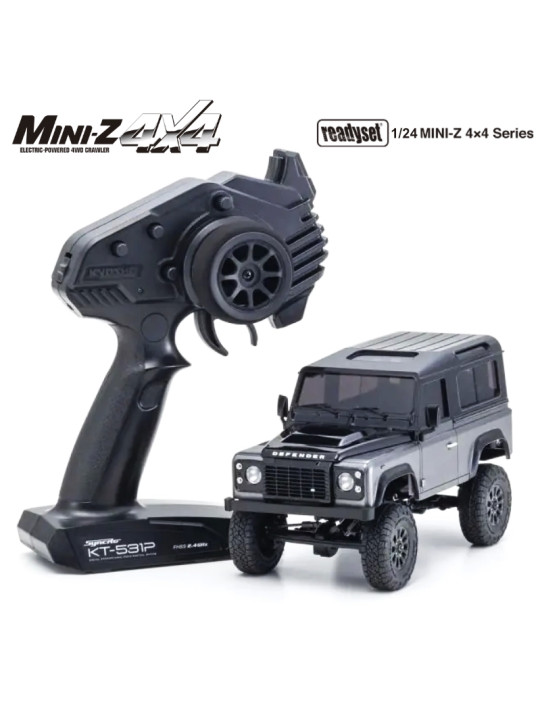

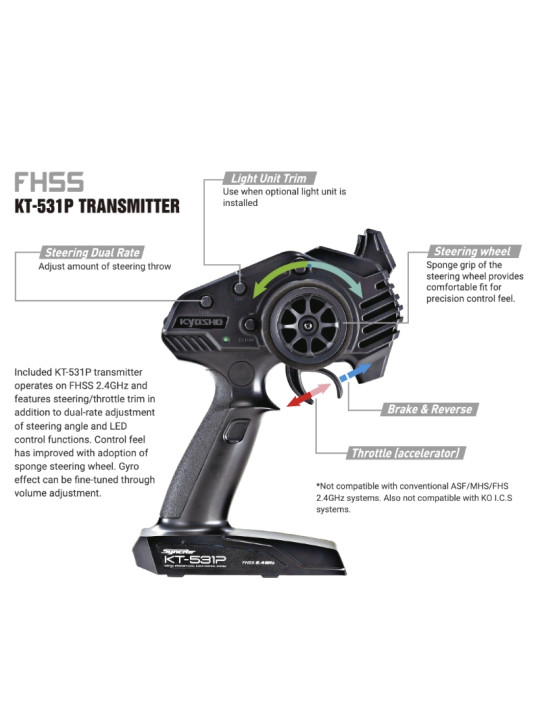

● Included KT-531P transmitter operates on FHSS 2.4GHz and features steering/throttle trim in addition to dual-rate adjustment of steering angle and LED control functions. Control feel has improved with the adoption of the sponge steering wheel. Gyro effect can be fine-tuned through volume adjustment It is not compatible with conventional ASF/MHS/FHS 2.4GHz systems. Also not compatible with KO I.C.S systems.

Kit Contents :
● Complete chassis with built-in electronics.
● Factory-painted body complete with many fine details
● KT-531P 2.4GHz transmitter
● Pinion gear set（10T、12T、14T、16T、18T、20T）
● 3 types of motor spacers
● Pairing stick

Required for operation :
● AAA alkaline batteries x 4 or NiMH batteries x 4 for chassis
● AAA alkaline batteries x 4 for KT-531P transmitter
