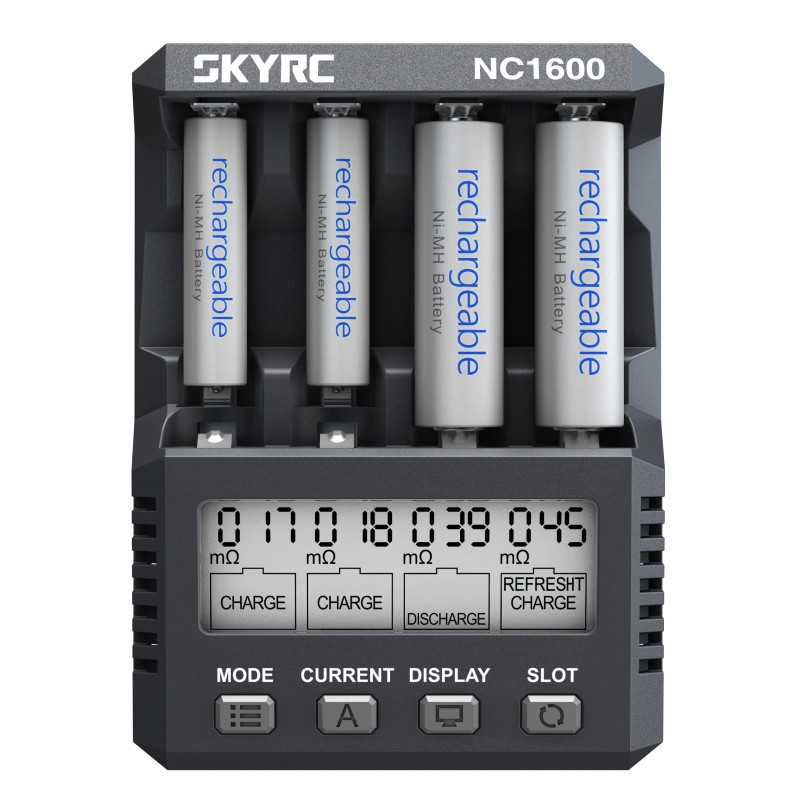

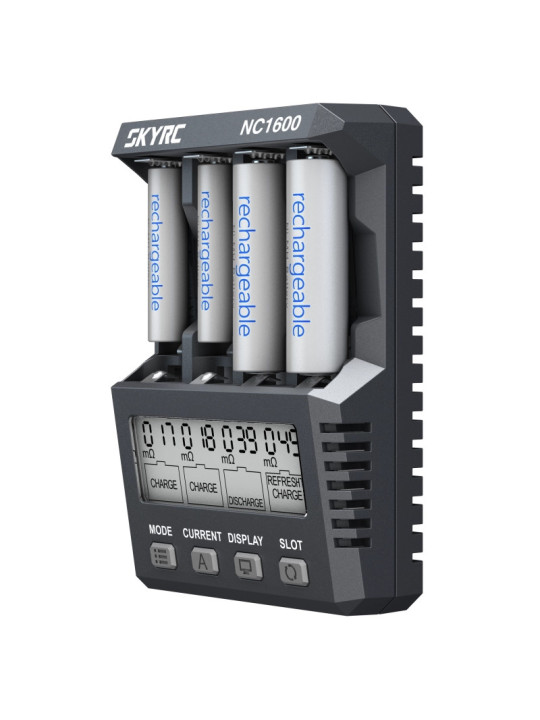

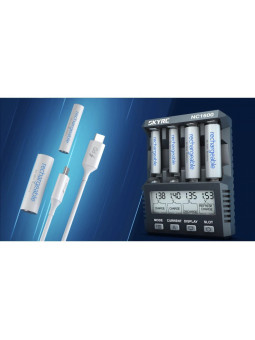

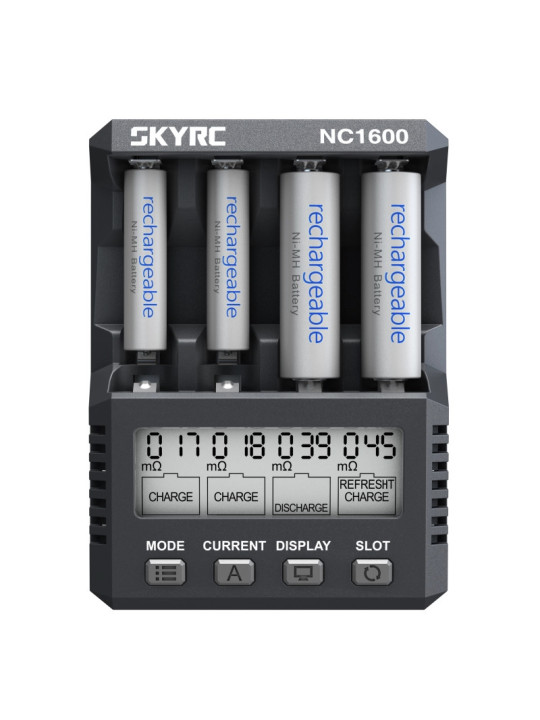

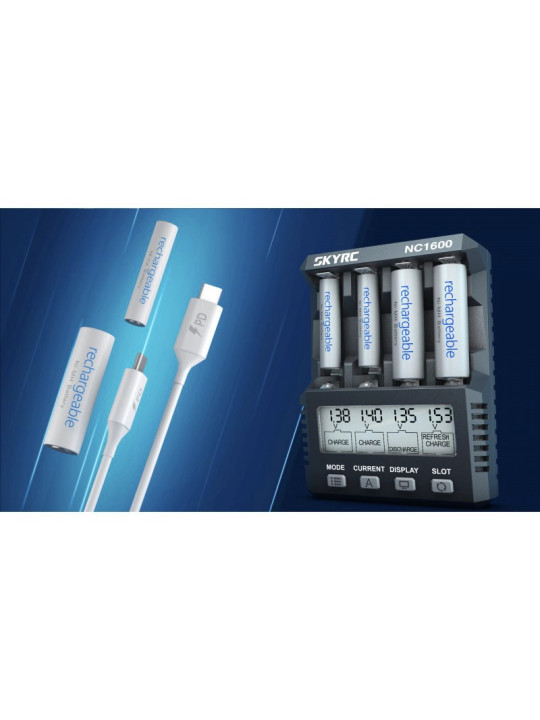

SKYRC NC1600 NIMH 4xAA/AAA BATTERY CHARGER SK-100191

SKYRC NC1600 NIMH 4xAA/AAA BATTERY CHARGER SK-100191

The SkyRC NC1600 charger is designed specifically for AA and AAA NiMH and NiCd batteries.
It features four independent charging bays that can simultaneously charge four batteries. With its three operating modes—CHARGE, DISCHARGE, and REFRESH—it can quickly charge, discharge, and analyze batteries.

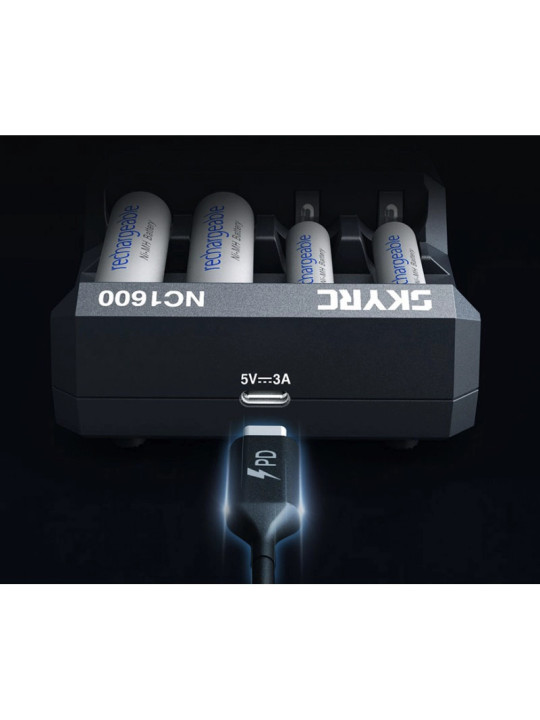

The charger is compatible not only with a standard 5V/2.1A adapter but also with QC3.0 and PD 5V/3.0A adapters. The charging current can reach a maximum of 1600mA.
Equipped with an LCD screen, various battery parameters are visible at a glance!

Features :
● 4 independent bays, capable of charging 1 to 4 cells simultaneously
● Easy operation with 4 buttons
● Intuitive interface with independent display for each bay
● Works with 15W QC3.0, PD 5V/3.0A, or 5V/2.1A adapters.
● Real-time battery parameters are displayed at a glance on the LCD screen.
● Automatic internal resistance measurement as soon as a battery is installed.
● Three operating modes: CHARGE, DISCHARGE, and REFRESH.
● Automatic start-up if no operation is performed within 8 seconds of battery insertion.
● Automatic current adjustment based on the detected internal resistance.
● Maintenance current ensures the battery is fully charged.
● Multiple protections: overheating, reverse polarity, overcurrent, overcapacity, overvoltage, and short circuit.

Technical Specifications :
● Power Supply: 15W QC3.0, PD 5V/3.0A or 5V/2.1A
● Battery Types: NiMH / NiCd
● Battery Size: AA / AAA
● Charging Currents:
● Powered by a 15W QC3.0, PD 5V/3.0A adapter: 1600 mA per bay for up to 3 batteries, 1500 mA for 4 batteries.
● Powered by a 5V/2.1A adapter: 1600 mA per bay for up to 2 batteries, 1000 mA for 4 batteries.
● Powered by a 5V/2.1A adapter: 1600 mA per bay for up to 2 batteries, 1000 mA for 4 batteries.
● Discharge current: 100 to 700 mA
● Maintenance current: 30 to 70 mA
● Operating modes: CHARGE / DISCHARGE / REFRESH
● Discharge end voltage: 0.9 V
● Capacity protection: 3000 mAh
● Operating temperature: 0 to 40 °C
● Operating humidity: 10 to 90% RH
● Storage temperature: -10 to 70 °C
● Storage humidity: 20 to 70% RH
● Dimensions: 108 x 79 x 32.9 mm
● Net weight: 114 g

Product contents :
● 1 x NC1600 Charger
● 1 x User manual
